昱道景观：交子人行桥公园实现了与东西绿地公园、南北立体游逛系统的有效链接，为市民提供了一处纵横交织的公共空间，为城市增添了一抹亮丽的风景，提升城市感受力。

Yudao Studio：Jiaosi Pedestrian Bridge Park realizes an effective link with the east-west green parks and the north-south three-dimensional wandering system, providing a vertical and horizontal public space for the public, adding a touch of beautiful scenery to the city and enhancing the urban sensibility.

项目位于成都市高新区金融城片区，是一座横跨锦江之上的全人行盖板式绿化桥，是链接东、西交子公园绿地的重要枢纽。桥面宽约120米、长约 1100米，面积约12300平方米，再加上两侧链接区域的绿地公园景观更新，共约为38000平方米。西起交子公园（西区），由西向东依次跨越科华南路（红星路南延线）、锦江绿道、锦江、国华街，止于交子公园（东区）。桥梁共分为跨河主桥段、跨线桥（跨科华南路）、引桥（坡道）及梯道三部分。共设置4处螺旋形梯道及电梯与市政道路接驳，主桥东岸设置1处梯道及坡道与锦江绿道接驳。

The project is located in the Financial City area of Chengdu High-Tech Zone. It is a pedestrian-only, deck-type green bridge spanning the Jinjiang River, serving as a crucial link between the green spaces of East and West Jiaozi Parks. The bridge has a width of approximately 120 meters and a length of about 1100 meters, covering an area of 12,300 square meters. Combined with the landscape renewal of the connected green park areas on both sides, the total project area reaches approximately 38,000 square meters. Starting from Jiaozi Park (West District) in the west, the bridge crosses Kehua South Road (a southern extension of Hongxing Road), the Jinjiang Greenway, Jinjiang River, and Guohua Street, terminating at Jiaozi Park (East District). The bridge is divided into three main sections: the river-crossing main bridge, the overpass (crossing Kehua South Road), and the access ramps and stairways. Four spiral stairways with elevators connect to the municipal roads, while the eastern end of the main bridge features one additional stairway and ramp connecting to the Jinjiang Greenway.

▽桥面公园与交子公园连成一片 ©河狸景观摄影

▽桥面公园由多个“浮岛”链接 ©河狸景观摄影

▽坡道与锦江绿道接驳 ©河狸景观摄影

▽从地面滨水绿道望向交子人行桥公园 ©河狸景观摄影

我们作为方案深化及施工图设计单位，在交子桥整体规划、设计的内容前提下，重新组织与地面绿地系统的衔接、恢复滨河绿道与桥面公园的交互关系，同时在桥面公园整体极限结构的限制下呈现桥面绿地系统的落地。实现了东西绿地公园、南北立体游逛系统的有效链接，与滨河绿道系统形成纵横交织的公共景观开放空间，给居民工作及生活带来极大便利，提升交子公园金融商务区的整体形象及城市感受力。

As the unit responsible for the scheme development and construction drawing design, we reorganized the integration with the ground green space system and restored the interaction between the riverside greenway and the bridge park, based on the overall planning and design of the Jiazi Bridge. At the same time, we presented the implementation of the bridge green space system within the structural limitations of the bridge park’s overall extreme design. This achieved an effective connection between the east-west green space parks and the north-south multi-dimensional strolling system. Together with the riverside greenway system, we created an interconnected public landscape open space, It brings great convenience to residents’ work and life, and improves the overall image and urban sensibility of the financial and business district of Jiaozi Park.

▽空中鸟瞰交子绿轴 ©河狸景观摄影

▽跨越锦江的“绿桥”，成为了城市中靓丽的一抹风景 ©河狸景观摄影

01 桥面方案深化落地

Deepening and implementation of the bridge deck design scheme

由于河道管理对于桥墩数量及直径的限制，对桥面结构计算就提出了较高要求。在盖板部分的桥梁深化设计时，结构设计单位为了解决这一难题，经过数轮论证及计算，通过四根桥墩柱撑起了整个桥面，最终形成桥下净空8.8米，桥墩柱直径2.5米，桥墩净距67.5米，既保证桥下通航的前提，也使得整个桥梁系统看起来像是漂浮在锦江上的“绿色浮岛”，轻盈且科幻。

Due to the restrictions imposed by river management on the number and diameter of bridge piers, the structural design of the bridge deck faced high demands. During the detailed design of the slab section, the structural design team addressed this challenge through multiple rounds of discussion and calculations. Ultimately, they supported the entire bridge deck with four bridge piers, resulting in a clear height of 8.8 meters under the bridge, a pier diameter of 2.5 meters, and a pier spacing of 67.5 meters. This solution not only ensures the clearance required for navigation beneath the bridge but also gives the entire bridge system the appearance of a “green floating island” hovering on the Jinjiang River—light and futuristic.

▽桥梁方案设计提出的桥面十大空间 ©中建西南设计院

▽深化方案后的桥面、桥下景观系统 ©昱道景观

四根结构柱完成了对桥面的支撑，桥面的荷载预留十分有限。主桥圆盘中间半径4m范围内拟进行植树，按照等效覆土1.5m进行考虑，即圆盘中心半径4m范围内按照27 kN/m2进行计算。圆盘靠近人行道4m范围内考虑按4m等间距环向植树，按照150kN集中荷载进行计算；桥梁的钢结构板到完成面预留5cm厚度，需要同时考虑所有桥面系统的给排水、强弱电、泛光系统、专项系统的管线等，还要考虑抗拉抗变形的高性能地面铺装。这些内容需要一个集成的整体统筹考虑方能完整得以实现。

The ultra-slim structural columns effectively support the bridge deck, but the load-bearing capacity of the deck remains highly constrained. Within a 4-meter radius at the center of the main circular platform, tree planting is planned, with calculations based on an equivalent soil depth of 1.5 meters and a load of 27 kN/m². In the 4-meter range adjacent to the pedestrian walkway, evenly spaced circular tree planting at 4-meter intervals is planned, calculated as a 150 kN concentrated load. The steel structure of the bridge provides a 5 cm thickness reserved for the final deck surface, which must accommodate the integration of all bridge systems, including drainage, power and lighting systems, and specialized pipelines. Additionally, it requires a high-performance pavement that resists tension and deformation. Achieving this necessitates comprehensive, integrated planning to ensure seamless execution.

▽漂浮在锦江上的人行桥面公园，桥面采用白色铝单板与滨河融为一体，极具未来感 ©孙庆 ©河狸景观摄影

在深化工作之初，我们讨论、梳理了桥面几个节点的主题内容，需要从材料、生产厂家、实施路径及条件，并跟桥体本身的结构特性、材料特性相结合，反向推导其之间的组合关系、管网逻辑、形体关系及材质感受等。项目的难点在于多处技术综合应用在国内当属首例，在前期的统筹协调及设计安排上面临较大难题。

在与多专业的多家供应商、顾问团队讨论后，最终确定多节点的组合关系。明确了设计深化工作的组成顺序。例如，需要兼顾多景观节点的供水，在给水方案上，如何到达桥面就有多条路径，但需要协同各专业一起讨论，得出初步实施方案，再经由业主方、物业管理等给出具体操作意见，再到落地的方案和技术图纸。给水达到桥面，需要再协同桥梁设计，尽量实现管线的隐藏，桥面因为面层厚度无法通过，需要从墩柱侧面寻找路径穿过，且避免能量损耗保证加压水景的功效，管道路径保证在120米以内，再从桥板面有限开孔区域升至桥面景观节点处… …诸如此类问题，需要集中的在深化设计的全过程与各专业紧密协同，保证最终呈现的终极效果。

At the outset of the design development, we discussed and organized the thematic content of several key nodes on the bridge deck. This required consideration of materials, manufacturers, implementation paths, and conditions, while also integrating these factors with the structural characteristics and material properties of the bridge itself. We then worked backwards to deduce the relationships between these elements, including their combinations, network logic, spatial configurations, and material sensations. The challenge of the project lies in the pioneering application of multiple technical integrations, which are a first in the country. This posed significant difficulties in the early-stage coordination and design arrangements.

After discussions with multiple suppliers and consultant teams across various disciplines, the combination relationships of the various nodes were ultimately determined. This led to the establishment of the sequence for design detailing. For instance, considering the water supply needs of various landscape nodes, multiple potential pathways for delivering water to the bridge deck were explored. These pathways required interdisciplinary coordination to develop an initial implementation plan, which was further refined based on input from stakeholders such as the project owner and property management. The finalized implementation plan and technical drawings were derived through this iterative process.Delivering water to the bridge deck necessitated additional coordination with bridge designers to hide pipelines wherever possible. Since the surface layer thickness of the bridge could not accommodate pipes, alternative routes were identified along the sides of the piers to avoid energy loss and ensure the efficiency of pressurized water features. Pipeline pathways were designed to remain within a 120-meter limit, ascending through limited perforations on the bridge deck to reach designated landscape nodes. Challenges of this nature required continuous interdisciplinary collaboration throughout the detailed design process to achieve the optimal final presentation.

▽人行桥深化过程分解，明确架构梳理专项实施必要条件及各关联衔接项 ©昱道景观

人行桥在规划之初，为解决在桥面公园休憩遮风避雨的功能，设置了能提供更多人群使用的大挑檐廊架。并因为人群的聚集，为将来实施的运营空间提供可能性，形成多种复合空间的使用功能。但因为本身处于河道中，抗震、风力、结构荷载等诸多因素影响着大跨度的挑檐的结构实验。其中最大跨度的一号廊架，挑檐宽度达16米，并且要实现极致轻薄的边缘檐口效果，我们在结构形式上尝试过无数次，最终形成雪花状结构龙骨，叠加钢化玻璃的形式。将顶部中心向内凹，形成雨水回收的低点，利用桥墩柱向下排水，保证廊架下方足够的风雨遮蔽空间。用网状龙骨拉紧廊架，边缘处做到最小的420mm梁高，并直接用结构外露的形式，保证最小高度，再由幕墙专业于主龙骨中部区域进行外饰面衔接，以优美曲线衔接至完成面。

In the initial planning phase, large eave-like colonnades were incorporated into the bridge deck park design to provide shelter for pedestrians, enabling rest while protecting against wind and rain. Recognizing the potential for gathering crowds, these colonnades were also designed to accommodate future operational needs, offering multifunctional and adaptable spaces for various uses. Given the bridge’s location within the river channel, multiple factors—seismic resistance, wind loads, and structural load capacity—posed significant challenges to the structural testing of the large-span cantilevered colonnades. The largest, Colonnade No. 1, features a cantilever width of 16 meters. To achieve an ultra-thin and sleek edge profile, numerous structural iterations were explored. Ultimately, a snowflake-shaped structural keel combined with tempered glass was adopted. The roof center was carefully designed with a concave profile, forming a low point for rainwater collection. Rainwater is drained through the bridge pier columns, ensuring ample shelter underneath the colonnade from wind and rain. The colonnade is tensioned using a net-like structural keel, with the edge beam height minimized to 420 mm. The structure remains exposed, maintaining its minimal height. Curtain wall specialists seamlessly integrated the external finish in the central area of the main keel, achieving an elegant curved transition to the final surface.

▽三处巨型廊架错落分布在桥面公园中 ©河狸景观摄影

▽大跨度廊架设计演化，廊架设计细节及场景应用 ©昱道景观

▽廊架顶向内回收雨水向下提供遮风避雨的可运营空间 ©河狸景观摄影

三处廊架分别被赋予桥面清吧、交子书吧、交子广场的使用功能，为将来运营提供可能性，最大化提升市民休闲体验感，也使得场景活化，加强与人的交互联系，提供更多有功能性的景观场景空间。

The three colonnades were designed to accommodate diverse uses, including a bridge deck bar, a Jiaozi-themed book bar, and a Jiaozi Plaza, providing opportunities for future operations. These multifunctional spaces enhance the public’s leisure experience, activate the area, and strengthen interaction between people and the landscape. The resulting design offers more functional and engaging landscape spaces.

▽不同尺寸的廊架适应不同的场景空间 ©河狸景观摄影

▽跨度最大的1号廊架下形成未来的可经营空间 ©河狸景观摄影

▽二号廊架下构建了一处可休憩的移动书屋 ©河狸景观摄影

▽起坡的廊桥围绕着三号廊架螺旋升起 ©河狸景观摄影

02 桥面互动的实现

Interactive Bridge Features

人行桥面公园的位置也是规划的未来锦江夜游的一个重要点位，所以于桥面正中空开处，利用桥与水面的高差，布置了一处可多角度观看的互动雾幕。利用加压的水柱向水面形成雾柱，再结合声光的配合，于环的下方利用底部吊顶轮廓，通过隐藏设置六台投影设备，利用极小的投射夹角，于雾幕背面形成画面。

The bridge deck park is a key landmark for future Jinjiang River night tours. To enhance this experience, an interactive mist screen was installed in the open central area of the bridge deck. Utilizing the elevation difference between the bridge and the water surface, pressurized water jets create vertical mist columns. Integrated light and sound effects, combined with six hidden projection devices set beneath the circular ceiling structure, project visuals onto the mist screen at precise angles.

▽夜游公园桥 ©河狸景观摄影

▽桥面彩虹及雾幕水秀原理图 ©昱道景观

▽雾幕投影布置及检修方案，实现检修的可达 ©上海星一

通过这一节点内容的设置，实现夜游时桥面桥下皆能感受到节点内容的魅力，实现多维度景观共赏的目的，并且联通锦江及两岸可游可观的游览目的。给夜间出行的市民一处共赏、打卡的目的地。

This design ensures that both the bridge deck and the space below can captivate visitors during night tours, offering a multi-dimensional scenic experience. The project connects Jinjiang River and its banks, providing a shared landmark and a vibrant nighttime destination for visitors.

▽在桥面观看雾幕可以视线360度环看效果 ©河狸景观摄影

▽夜幕下，两岸围观雾幕的人们 ©河狸景观摄影

▽适应不同观看主题的雾幕SHOW场 ©河狸景观摄影

▽雾幕开启时周围较远处人们也可清晰观看 ©河狸景观摄影

在布置好夜间的景观点位的同时，白天也呼应主题，设置一处人造彩虹。根据太阳高度角的位置，在桥面合拢后实时进行现场检测，调整规划了最适合桥面成型的角度方位和观看时间，同样利用加压水柱（但控制喷射出口控制，对人体无危害）向上形成喷射柱，形成水雾墙后，在20米左右范围形成最佳观赏点。

While the nighttime experience is captivating, the daytime design also complements the theme with a manmade rainbow feature. The system uses pressurized water jets (with controlled, harmless outlets) to form upward mist columns. Through real-time testing of the sun’s elevation angle after bridge construction, the optimal position, angle, and viewing times were identified to create a 20-meter radius optimal observation point.

▽水景顾问素水设计根据原规划彩虹位置，于桥面进行在地角度及数据测量收集，分析并建议落位了更合适的彩虹点位，我们结合新的点位进行落地设计，保证技术实际及趣味性的平衡 ©昱道景观

▽彩虹开启效果 ©河狸景观摄影

▽彩虹下，玩耍的孩童们 ©河狸景观摄影

水柱虽然加压，但受风的影响较大，且单位立方的水量需要回收再利用。在这基础上，是否利用大量的水柱落下后，形成可戏水的场所，成为小朋友大朋友都能互动的空间。于是我们利用环形水域的形态，将加压喷头安全隐藏起来，利用无棱角的造型处理，在水池中形成游戏水道，配合夜间星星灯及投射灯的光影，形成白天夜间都能玩乐的游乐场。

Although the pressurized water jets achieve the desired effect, they are highly susceptible to wind and require water recycling for sustainability. To address this, the design evolved to create a playable water space for both children and adults. Utilizing a circular water zone, the pressurized nozzles are safely hidden, and rounded-edge forms ensure safety. The water area doubles as a playful waterway during the day and transforms into a magical nighttime playground with starry lights and projection lighting effects.This design ensures an engaging, interactive experience for visitors of all ages, seamlessly transitioning between day and night.

▽承接彩虹水柱落下的水池，也成为孩童嬉戏的场所 ©河狸景观摄影

在引桥一侧，有一处嬉水乐园，取荷叶上五色露珠的概念，需要还原幻彩互动水景的效果。在旱喷开启与不开启时皆有景可观，同时考虑到夏季夜间散步玩乐的市民数量巨大，考虑夜间光彩与旱喷水景结合，增加该区域的互动可玩性。

On one side of the approach bridge, a playful water park was designed, inspired by the concept of colorful dewdrops on lotus leaves, aiming to recreate an iridescent interactive water feature. The design ensures visual appeal whether the dry fountain is active or inactive. Considering the high number of visitors during summer evenings for strolls and recreation, the integration of lighting effects with the water fountain enhances the interactivity and playability of the space.

▽炫彩水秀是夏季最受欢迎的互动水景之一 ©河狸景观摄影

▽日常不开水时，也是一处互动的炫彩玻璃舞台 ©河狸景观摄影

▽人们在水景嬉戏时，也感受炫彩玻璃变色的效果 ©河狸景观摄影

我们从材料上着手寻找，在漫水的反光材质上达到炫彩效果且保证戏水的安全性、保证一定的防滑度。经过多次寻找和实验，最后选定用支撑器+炫彩防滑玻璃的做法来实现。采用19mm防滑处理超白钢化玻璃+2.28SGP+10mm炫彩片+2.28SGP+19mm超白钢化玻璃+2.28SGP+19mm超白钢化玻璃，在阳光下呈现不同的炫彩光晕。再利用支撑器放置调平，保证上人面的平整度及稳定性。保证所有面层不留余水，及时实现回水利用的目的。

We focused on material selection to achieve the iridescent effect on water surfaces while ensuring safety, slip resistance, and usability. After extensive trials and experiments, the final solution employs supporting devices with iridescent anti-slip glass. The materials include:19mm anti-slip ultra-clear tempered glass + 2.28mm SGP + 10mm iridescent film + 2.28mm SGP + 19mm ultra-clear tempered glass + 2.28mm SGP + 19mm ultra-clear tempered glass.This combination creates colorful halos under sunlight while maintaining structural integrity. Supporting devices allow precise leveling, ensuring a stable and even surface. Additionally, the system ensures effective water drainage with no water accumulation, enabling efficient water recycling.

▽幻彩水秀详图 ©昱道景观

▽孩童们感受光线变化下炫彩玻璃和水景的乐趣 ©河狸景观摄影

通过对这几个重要节点的场景想象，实现人行桥面公园公共、互动、休闲可玩的大致目标，也通过精细化的设计和各专业紧密衔接，实现日夜景不同、智能管控等专项目标，为市民提供更多面更有趣的休闲体验目的地。

Through detailed design and careful integration of multiple disciplines, the key nodes achieve a vibrant, interactive, and functional bridge park that provides distinct day and night experiences with intelligent control systems. This creates a versatile leisure destination, offering a variety of engaging and interactive experiences for the public.

▽通过对这几个重要节点的场景想象，实现人行桥面公园公共、互动、休闲可玩的大致目标 ©孙庆

▽为市民提供更多面更有趣的休闲体验目的地 ©河狸景观摄影

03 实现公园桥的必要环节，植物

因该河段有通行功能，需要尽量高和宽的桥下空间来保证航道及行洪，因此通体采用四根直径两米多的桥墩柱支撑整个桥面。同时因为这样布置的桥墩柱形式，对整个桥面的荷载总量也提出更高要求。人行桥为全钢体桥结构，除开桥体自身重量之外，桥面的公园系统，包括种植土、植物、小品、桥面铺装、水电管网等，都需要精细化设计及控制，以满足这一前提条件。

Due to the river’s navigational requirements, the bridge design prioritizes ample clearance and width below to ensure the waterway’s flow capacity and vessel passage. The bridge deck is supported by four columns, each with a diameter of over 2 meters. This configuration imposes stricter limitations on the bridge’s overall load capacity. The pedestrian bridge, constructed entirely of steel, requires careful design and control of all deck systems, including planting soil, vegetation, amenities, paving, and utility networks, to meet these structural constraints.

▽为了植物能够良好的生长，我们在钢桥面布置防水耐穿刺的保护层，再设置排水板以达到隔离、排水的作用 ©河狸景观摄影

▽漂浮在桥上的绿洲与滨河绿道系统形成纵横交织的公共景观开放空间 ©河狸景观摄影

▽实现了东西绿地公园、南北立体游逛系统的有效链接 ©河狸景观摄影

通体钢桥的形式对于在其上层种植植物本身有一定影响，其传热导热性能在夏季高温时会使得种植基层温度聚集升高，影响植物根系生长。我们在钢桥面布置防水耐穿刺的保护层，再设置排水板以达到隔离、排水的作用。另在重点乔木根系处布置土壤传感器，实时监控乔木土壤湿度，根据实时数据采取对应养护措施。

The all-steel bridge structure poses challenges for plant growth due to its thermal conductivity. In high summer temperatures, heat transfer can elevate the planting substrate temperature, negatively impacting tree root systems. To address this, a waterproof, puncture-resistant protective layer was installed on the steel bridge deck, followed by drainage boards to provide insulation and drainage. Additionally, soil moisture sensors were placed near key tree roots to monitor real-time soil humidity and inform targeted maintenance efforts.

▽乔木种植设计图 ©昱道景观

▽桥上的公园，人们在草坪上围坐休憩，享受落日 ©河狸景观摄影

▽市民在公园俯瞰河景 ©河狸景观摄影

在桥面上的乔木存在阵列和点植两种形式。点植在草坪上的大乔除了对土壤、根系定点检测以外，还需要设置固化的隐藏种植池来固定根部且表面形态自然融合。阵列的乔木使用独立种植池来完成桥面种植，在定制的不锈钢种植器内部同样布置防水涂层并固定于钢桥面，以轻质透水材料置于底部，且布置导水管解决浇灌及雨水渗透，形成单独种植池以布置二乔。

同时，我们在深化过程中，尽量控制桥面及桥下乔木品种的风貌及系统。在桥面尽量以干练有表现力的、适应性较高的单一品种承接桥面公园整体性；而桥下则是自然系统，与滨河绿地柔性衔接。

Two planting methods were implemented for trees on the bridge deck.Spot Planting: For individual large trees on lawns, concealed planting pits were created to anchor roots securely while seamlessly blending with the natural landscape. Real-time soil and root condition monitoring ensures health and stability.Array Planting: Independent planting pits were used for rows of trees. Custom stainless-steel planters were lined with waterproof coatings, fixed onto the steel bridge surface, and filled with lightweight permeable materials. Integrated drainage pipes manage irrigation and rainwater seepage, ensuring optimal conditions for growth.

At the same time, during the design development process, we have worked to control the aesthetic and systemic characteristics of the tree species both on and beneath the bridge. On the bridge deck, we prioritized a single, expressive tree species with high adaptability to maintain the overall integrity of the bridge park. Beneath the bridge, we focused on creating a natural system that integrates smoothly with the riverside green space, fostering a flexible connection with the landscape.

▽统筹桥上与桥下的植物风貌 ©孙庆

▽桥上的娜塔莉森林 ©河狸景观摄影

▽桥下与滨河绿地柔性衔接 ©河狸景观摄影

▽雾环借鉴了交子钱币的环形，回应所在地金融城的历史背景 ©河狸景观摄影

通过这些操作处理，最大限度保证桥面乔木存活及良好长势。在经历过项目开放的夏季后，这一系列保证措施得以证实其对乔木生长的有力保证。

These measures ensure maximum tree survival and healthy growth. Following the project’s first summer season after completion, these strategies have proven effective in supporting tree vitality.

04 桥下灰空间的利用

Utilization of the Under-Bridge Grey Space

公园西侧滨河步道平均宽度较窄，在交子桥下方区域更显郁闭，我们考虑到此处本身为一处停留休憩的节点空间，是否可以将桥上下空间联通，做更多功能性布置呢？因此利用两侧延续的退台挡墙进行连接，形成一处内凹挡墙，将滨水步道空间内退扩大，并结合幻彩水秀的节点打造，将出挑区域形成透明互通的空间，上下视线联动。再结合内退空间形成少量台阶，布置水电，即为将来运营点位提供可能性，也解决桥下观众观看水幕SHOW场的看台功能。

通过这一处小节点的空间打造，消化现状通道性的消极空间，将这一处灰空间得以利用，赋予其功能性，也在夜间形成一处互动性更强的绿道节点。

The riverside walkway on the west side of the park is relatively narrow, and the area beneath the Jiaozi Bridge feels particularly enclosed. Recognizing this space as a potential rest and gathering point, we explored opportunities to connect the space above and below the bridge and incorporate more functional elements. Therefore, we utilized the stepped retaining walls on both sides to create a recessed retaining wall, which expands the riverside walkway space. By integrating this with the location of the colorful water show, we formed a transparent, interactive space in the protruding area, allowing for visual connection between the upper and lower levels. Additionally, a small set of steps was added to the recessed space, along with the installation of water and electricity utilities. This design not only provides potential for future operational use but also resolves the issue of creating a viewing platform for the audience to watch the water curtain show beneath the bridge.

Through this thoughtful design, we transformed a previously underutilized grey space into a functional and interactive node. This not only enhances connectivity but also creates a vibrant and engaging greenway feature, particularly at night when interactivity is at its peak.

交子人行桥面公园区域，是在金融城片区一处重要城市绿地链接节点，是未来周边市民生活休闲的一处重要绿色纽带。现阶段金融城东区正处于建设期，待各地块产业落位呈现时，交子绿轴公园、滨江绿道区域会吸引更多市民的参与及使用。沿江两岸布局了根据产业内容延展出来的各种商业服务业态，也会一并链接因人的聚集而产生的新消费业态，在设计前期，将这一因素考虑进去，在空间形态及功能配合上去做更多预留，以备未来时需。

The Jiaozi Pedestrian Bridge Park is a key urban green link within the Financial City district and serves as an essential green corridor for nearby residents. As the Financial City East District continues its construction phase, this green connection will play a pivotal role in attracting citizens to the Jiaozi Green Axis Park and the riverside greenway. With the planned development of surrounding industries and the introduction of various commercial and service-oriented functions, new consumption patterns driven by human activity and gatherings will emerge.During the early stages of planning and design, this factor was anticipated, and provisions were made in the spatial layout and functional design to accommodate future demands.

交子人行桥面公园开放后，链接了交子绿轴公园、滨江绿道的游逛体系，吸引了大量市民前去休闲游逛。无论是晨起暮色时分的跑步、骑行人群，下班后附近散步的居民，夏日傍晚在桥上与水嬉戏的孩童，还是将来夜游开通后参观的游客，都将从各个角度全方位的感受到这座“绿桥”的魅力。随着时间的脚步，四季的更迭带来更多场景的变化和感受，静静的伴随这座城市的发展，作为片区发展的见证者。

Following the opening of the Jiaozi Pedestrian Bridge Park, it has successfully linked the Jiaozi Green Axis Park and the riverside greenway, attracting a large number of visitors for leisure activities. Whether it is runners and cyclists in the early morning or evening, residents enjoying a post-work stroll, children playing in the water on summer evenings, or tourists admiring the night tours, the bridge offers a unique multi-dimensional experience.Over time, the park will reflect the changing seasons, offering a variety of evolving scenes and sensory experiences. Quietly accompanying the city’s growth, the bridge stands as both a functional landmark and a witness to the area’s development, fostering connections between the environment, the community, and the future of urban life.

05 后记

epilogue

我们非常荣幸能参与人行桥的设计工作，作为城市建设者的一份子，为这座城市的公共绿地系统重要节点提供一次可能性的答案，无疑也是集体智慧、突破想象的一次尝试。感谢各级领导、业主领导及管理团队对项目坚定的决心，也感谢和我们并肩的各专业单位对项目不遗余力的努力，共同协同研发及实施，使得项目顺利呈现。为市民提供一处休闲地，一座横跨锦江的”绿桥”，一座公园城市的想象之桥。

We are deeply honored to be part of the pedestrian bridge design project. As contributors to urban development, it is a privilege to provide a potential solution for a key node in the city’s public green space system. This project represents a collective endeavor of creativity and innovation. We extend our heartfelt gratitude to the leaders at all levels, the project owners, and the management teams for their unwavering commitment to this initiative. We also sincerely thank the professional teams who worked alongside us, offering their relentless efforts in research, development, and implementation, ensuring the project’s successful completion. This bridge not only offers citizens a place for leisure but also serves as a “green bridge” spanning the Jinjiang River—an imaginative link within a park city.

▽交子桥建设过程 ©昱道景观

▽项目图纸资料 ©昱道景观

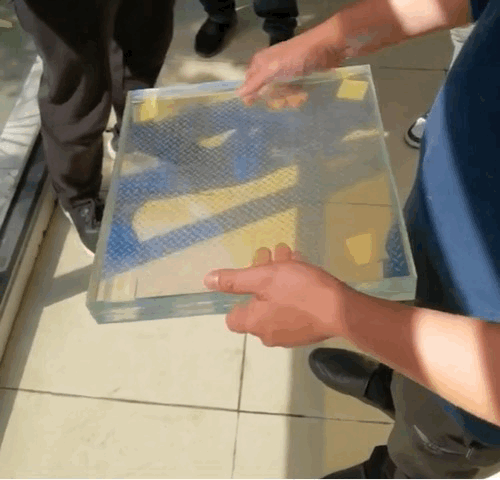

▽幻彩玻璃 ©昱道景观

▽材料打样 ©昱道景观

▽整体过程 ©昱道景观

项目地址：成都高新区
项目面积：约35000㎡
业主单位：成都交子公园金融商务区投资开发有限责任公司
景观方案深化及施工图设计单位：Yudao studio昱道景观
设计及完成时间：2022-2024年
团队成员：龙昱杉赵鑫源羊彦周佳苹赵君冯裕雯陈湘周梦琳李子田吴涛杨慧李武臣伍金琴罗浩张圣海（结构设计）罗樊坚高士友（水电设计）

桥梁方案及景观设计单位：中国建筑西南设计研究院有限公司
桥梁初步设计及施工图设计：四川西南交大土木工程设计有限公司
施工总包：中国五冶集团有限公司
钢结构专业实施单位：中国五冶集团有限公司
幕墙/装饰专业实施单位：四川鸿昊创新建筑工程有限公司成都几里创意幕墙有限公司
景观专业实施单位：四川东欣城市园林工程有限公司
绿化专业实施单位：成都清源水环境治理有限公司
水景顾问：素水设计
水幕/彩虹专业实施单位：上海星一环境科技有限公司
标识设计单位：良相
泛光设计单位：巍巍照明设计
强弱电专业实施单位：成都川越消防工程有限公司
桥面材料专业实施单位：宁波天意钢桥面铺装工程有限公司
电梯专业实施单位：四川盛兴嘉电梯有限公司
摄影版权：河狸景观摄影孙庆

Project Location: Chengdu High-Tech Zone
Project Area: Approximately 35,000㎡
Owner: Chengdu Jiaozhou Park Financial Business District Investment and Development Co., Ltd.
Landscape Design Development and Construction Drawing Design: Yudao Studio
Design and Completion Period: 2022–2024
Team Members: Long Yushan, Zhao Xinyuan, Yang Yan, Zhou Jiaping, Zhao Jun, Feng Yuwen, Chen Xiang, Zhou Menglin, Li Zitian, Wu Tao, Yang Hui, Li Wuchen, Wu Jinqin, Luo Hao, Luo Fanjiang, Zhang Shenghai (Structural Design), Luo Fanjian ，Gao Shiyou (Water and Electrical Design)

Bridge Design and Landscape Design Unit: China Southwest Architecture Design Institute
Preliminary Bridge Design and Construction Drawing Design: Sichuan Southwest Jiaotong University Civil Engineering Design Co., Ltd.
Signage Design: Liangxiang
General Contractor: China Fifth Metallurgical Group Corporation
Steel Structure Implementation: China Fifth Metallurgical Group Corporation
Facade/Decoration Implementation: Sichuan Honghao Innovative Architectural Engineering Co., Ltd.; Chengdu Jili Creative Curtain Wall Co., Ltd.
Landscape Implementation: Sichuan Dongxin Urban Landscape Engineering Co., Ltd.
Greening Implementation: Chengdu Qingyuan Water Environment Management Co., Ltd.
Water Feature Consultant: Sushui Design
Water Curtain/Rainbow Feature Implementation: Shanghai Xingyi Environmental Technology Co., Ltd.
Lighting Design: Weiwei Lighting Design
Electrical Implementation: Chengdu Chuanyue Fire Protection Engineering Co., Ltd.
Bridge Deck Material Implementation: Ningbo Tianyi Steel Bridge Deck Paving Engineering Co., Ltd.
Elevator Implementation: Sichuan Shengxingjia Elevator Co., Ltd.
Photography Copyright: HOLI, Sun Qing, Liangxiang, Yudao studio
